Product Introduction

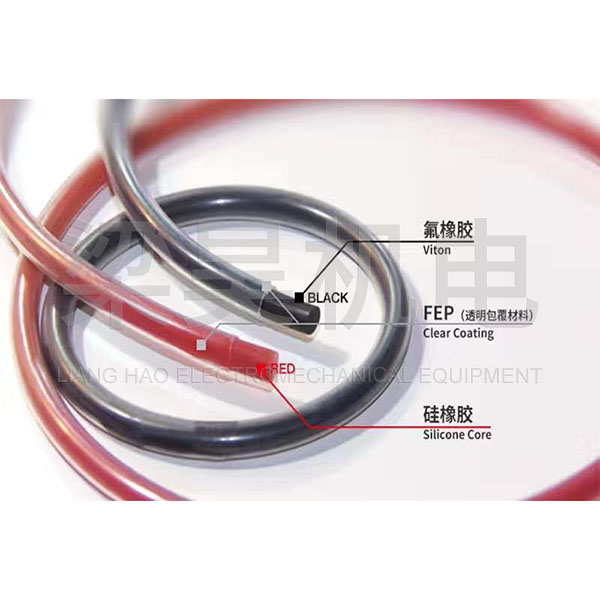

Full package fluorine O-ring series - mainly a all-weather sealing product with rubber O-rings. This sealing product is made of FEP and PFA special high-temperature resistant fluoroplastics and rubber, combined by a special process. It has the high compression permanent deformation performance of rubber O-rings, as well as the unique characteristics of fluoroplastics such as heat resistance, cold resistance, wear resistance, oil resistance, strong acid and alkali chemical corrosion resistance, and various chemical corrosion. It can be widely used in various dynamic and static sealing scenarios, and can replace all traditional rubber O-ring seals.
Product Features
Strong chemical corrosion resistance. Except for molten alkali metals and some fluorine-containing compounds that can interact with them, they are highly corrosive to other acids, bases, alcohols, ketones, aromatic hydrocarbons, chlorinated hydrocarbons, degreasers, oils, and fats;
Can be used normally within the temperature range of -60 ℃ to+220 ℃ (the use temperature varies depending on the material of the elastic core and the fluorine coated material);
Can be applied to fields with extremely high hygiene requirements such as food, medicine, and medicine;
Has physiological inertia, bactericidal, and disinfecting effects;
Has low frictional resistance, non adhesive and creep effects;
The inner core has good elasticity, greatly improving the sealing effect of the O-ring;
Widely used in aerospace, automotive industry, chemical industry, petrochemical industry, fine chemical industry, pharmaceutical industry, medical equipment, food industry, biotechnology, purified water, machinery industry, sewage treatment and other fields.
| 产品性能特征： | |||||
| 项目/Item | 单位/Unit | 标准值/Standard Value | |||
| A | B | C | |||
| 自由状态 Free State | 硬度Hardness | Hs | 70～90 | 70～90 | 70～80 |
| 伸长率（最小） Elongation（minimum） | % | 60 | 60 | 80 | |
| 拉伸长度（最小） Tensile（minimum） | Mpa | 16 | 16 | 16 | |
| 压缩率 Compressibility | % | 50-60 | 50-60 | 60-75 | |
| 回弹率 Recovery | % | ＞85 | ＞85 | ＞70 | |
| 永久变形 Permanent deformation | % | ＜10 | ＜10 | ＜10 | |
| 热空气老化 Hot Air Aging 230℃×24h | 硬度变化（最大） Variation of Hardness （maximum） | Hs | —5～+5 | —5～+5 | —5～+5 |
| 抗拉强度变化率（最大）Variable rate of tensile strength (maximum） | % | -15 | -15 | -15 | |
| 伸长率变化率（最大） Varibale rate of elongate rate（maximum） | % | -20 | -20 | -20 | |
| 压缩永久变形 | 175℃×70h | % | ≦20 | ≦21 | ≦22 |
| Permanent Compression Deformation | |||||
| 颜色 Color | 黑（红） Black（Red） | 黑Black | 红Red | ||
| 推荐使用条件 recommended operating conditions | 使用温度 Working temperature | ℃ | —20～+250 | —20～+200 | —50～+200 |
| 使用压力 Working pressure | Mpa | 0～20 | |||
| 使用介质： | 除元素氟和熔融状态金属钠以外的所有介质 | ||||
| Medium∶ Good for all kinds of work medium except pure fluorine and molten NA. | |||||
| 尺寸范围： | ||
| 截面直径D2 | 公差± | 内径D1 |
| Cross-section Diameter | Tolerance | Internal Diameter |
| 1.80 | 0.08 | ＞6.00 |
| 2.00 | 0.09 | ＞10.50 |
| 2.62 | 0.09 | ＞10.80 |
| 3.00 | 0.10 | ＞12.00 |
| 3.53 | 0.10 | ＞13.20 |
| 4.00 | 0.10 | ＞20.00 |
| 4.50 | 0.10 | ＞25.00 |
| 4.70 | 0.10 | ＞28.00 |
| 5.00 | 0.10 | ＞30.00 |
| 5.33 | 0.13 | ＞30.00 |
| 5.50 | 0.13 | ＞50.00 |
| 5.70 | 0.13 | ＞50.00 |
| 6.00 | 0.15 | ＞50.00 |
| 6.30 | 0.15 | ＞50.00 |
| 7.00 | 0.15 | ＞65.00 |
| 7.30 | 0.15 | ＞65.00 |
| 8.00 9.00 | 0.15 | ＞70.00 |
| 8.40 | 0.15 | ＞75.00 |
| 10.00 11.00 | 0.18 | ＞80.00 |
| 12.00 | 0.18 | ＞100.00 |
| 14.00 | 0.18 | ＞150.00 |
| 16.00 | 0.18 | ＞200.00 |
| 25.00 | 0.18 | ＞200.00 |
| 截面直径D2 | 公差± | 备注 |
| Cross-section Diameter | Tolerance | Remarks |
| ＜50 | 0.20 | |
| ＜100 | 0.30 | |
| ＜250 | 0.60 | |
| ＜500 | 0.65 | |
| ＜1000 | 1.20 |
